Digital Oscilloscope DIY Electronic Learning Kit (DIY Kit)

🔧 Introducing the DSO138 Digital Oscilloscope DIY Kit: a comprehensive electronic learning tool designed specifically for students and enthusiasts eager to enhance their understanding of digital oscilloscopes and electronic assembly. This kit stands out with its innovative design and user-friendly features, making it an ideal choice for both budding and seasoned electronics students.

🔧 Key Features:

🔍 1. Thorough Documentation: The kit comes with exhaustive documentation, including detailed circuit diagrams, clear assembly instructions, user manuals, and effective troubleshooting methods. This ensures that users, regardless of their experience level, can successfully assemble the oscilloscope with confidence and ease.

🧩 2. Variety of Components: A wide assortment of components is included, making it perfect for hands-on practice in both through-hole and surface-mount soldering techniques. This variety allows students to hone their component identification and soldering skills, crucial competencies in the field of electronics.

🧩 3. Practical Dual-purpose Tool: Beyond assembly instruction, the DSO138 acts as a functioning digital oscilloscope. Students can utilize it to observe and measure various signal waveforms applicable in audio and video synchronization, low-frequency switch power supplies, and infrared transmission, solidifying their practical knowledge in real-world applications.

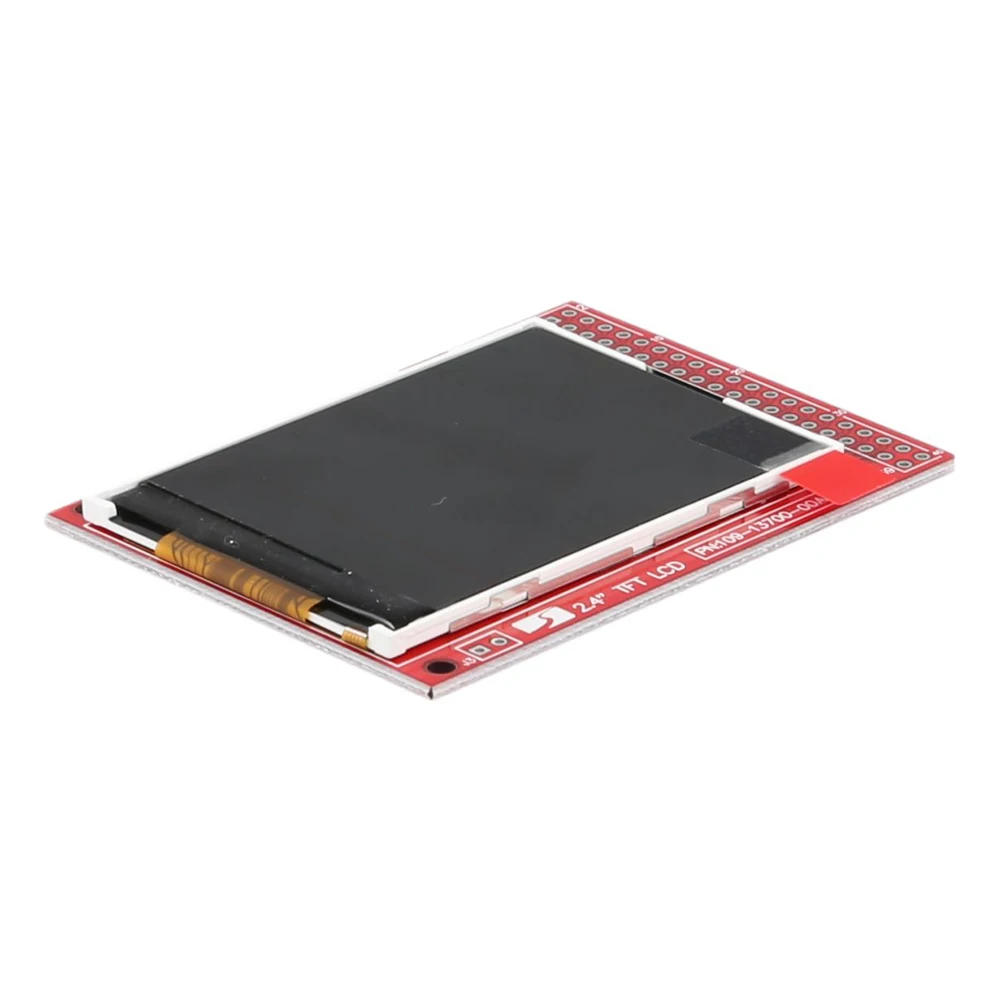

🔧 4. Advanced ARM Cortex-M3 Processor: This kit features an ARM Cortex-M3 processor (STM32F103C8) paired with a vibrant 2.4-inch color TFT display. This powerful combination allows users to embark on ARM development experiments, facilitating hands-on experience in programming and hardware interaction.

🧩 5. Multifunctional Development Platform: Serving not only as an oscilloscope but also as a microcontroller development and experimentation board, the DSO138 is designed to foster innovation. It comes with a complementary source code development package from Jinyue Electronics, enabling users to create diverse functionalities and applications on this adaptable board.

Specifications:

• Real-time Sampling Rate: 1Msps
• Accuracy: 12-Bit
• Sample Buffer Depth: 1024 Bytes
• Analog Frequency Bandwidth: 0 - 200KHz
• Vertical Sensitivity: 10mV/Div - 5V/Div (stepped)
• Input Impedance: 1MΩ
• Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
• Coupling Methods: DC/AC/GND

The DSO138 Digital Oscilloscope DIY Kit emphasizes simplicity and reliability in circuit design. With moderate assembly difficulty and a high success rate, this kit equips students with a deep understanding of oscilloscope principles and practical electronics skills. Completed kits provide invaluable tools that enhance electronic learning and experimentation for years to come.

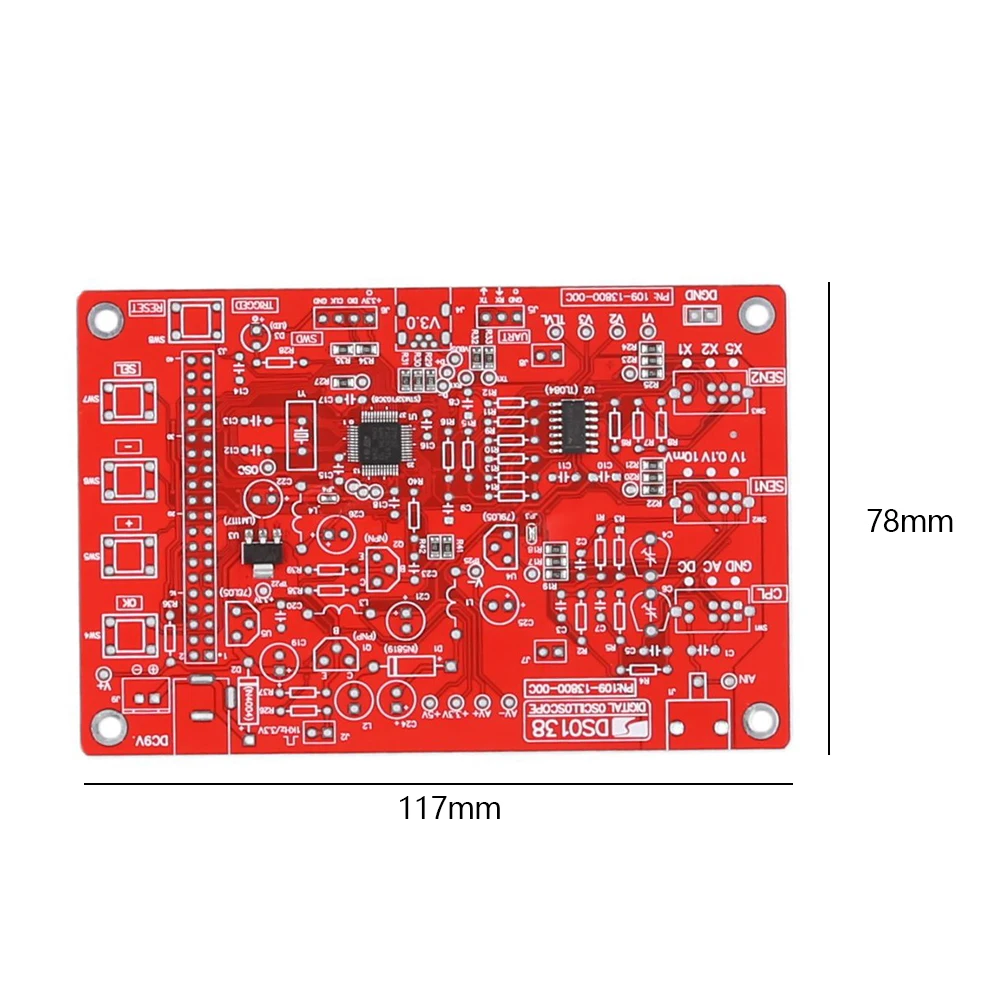

Size: 117x78x17mm (4.61x3.07x0.67 inches)

💍 Note: Actual product colors may vary slightly from images due to monitor settings, and allow for 1-2cm measuring deviations.
