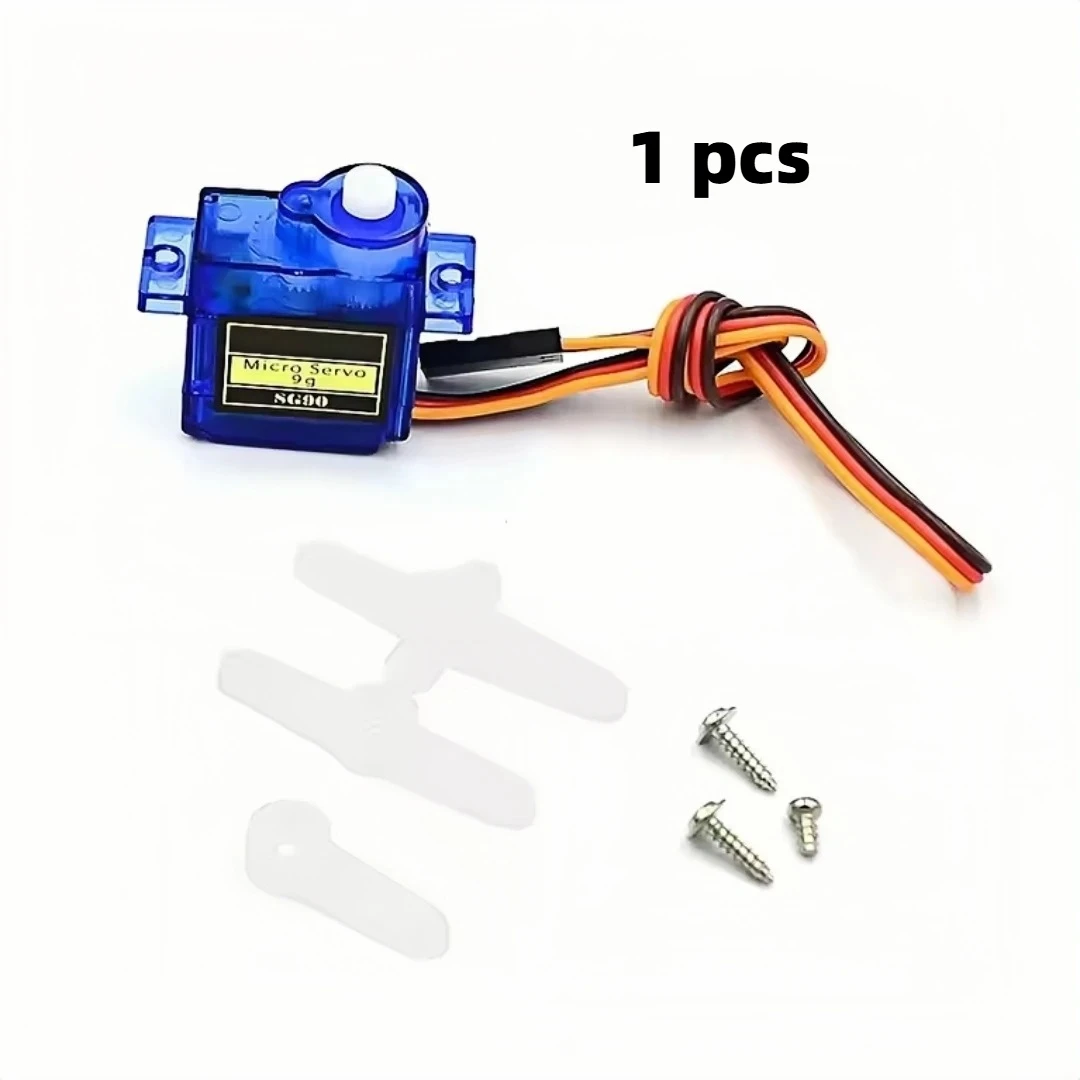

Enhanced Digital Mini Micro Servo - 180/360 Degree for RC Models and Robotics (SG90 360 degrees)

🛠️ Product Overview: The SG90 MG90S Digital Mini Micro Servo is an essential component for hobbyists and robotics enthusiasts looking for precision and reliability in their projects. Whether you're working on an RC helicopter, airplane, mini boat, or car, this versatile servo motor is designed to provide optimal performance across a range of applications.

MG90S Servo Specifications:

• Product Name: MG90S 14g Digital Servo
• Net Weight: 13.4g
• Dimensions: 22.8 x 12.2 x 28.5 mm
• Torque: 1.8 kg/cm (4.8V), 2.2 kg/cm (6.0V)
• Speed: 0.10 sec/60 degrees (4.8V), 0.08 sec/60 degrees (6.0V)
• Operating Voltage: 4.8V - 6V
• Temperature Range: 0 - 55°C
• Action Dead Zone: 5 µs
• Gear Material: Plastic
• Working Mode: Simulation

SG90 Servo Specifications:

• Product Name: SG90 9g Digital Servo
• Net Weight: 9g
• Dimensions: 23 x 12.2 x 29 mm
• Torque: 1.5 kg/cm
• Speed: 0.3 sec/60 degrees
• Operating Voltage: 4.2V - 6V
• Temperature Range: 0 - 55°C
• Action Dead Zone: 10 µs
• Gear Material: Plastic
• Working Mode: Simulation

💍 Wiring Information: The servo is easily connectable with a standard wiring setup: the orange signal line connects to the control unit, the red wire is the positive power supply, and the brown wire is the negative pole. This straightforward configuration allows for quick integration into your projects.

📦 With its combination of weight, compact size, and efficient power consumption, the SG90 MG90S servo is ideal for applications requiring precise movement control, making it a preferred choice for various remote-controlled systems and robotic creations.
